起重机卷筒电缆-柔性耐磨耐弯曲抗拉电缆

上架时间:2019-08-20
浏览次数:250
产品类型:
产品分类:
产品详情

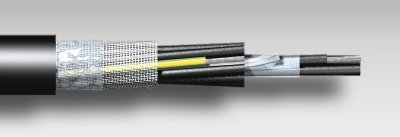

起重机卷筒电缆-柔性耐磨耐弯曲抗拉电缆Cable flex Reel  0,6/1kV


卷筒电缆

该起重机卷筒电缆带有编织物加固,集成在外护套中,可防止高机械应力,专为电缆卷轴设计,速度可达120 米/ 分钟。适用于起重机,电梯等役备中。电缆适合安装在干燥,潮湿和潮湿的地方以及户外。

Flexible cable with textile reinforcement integrated in the outer sheath as a protection against high mechanical stress, designed for cable reels with speeds up to 120 m / min. in cranes, elevators, etc. The cables are suitable for installation in dry, damp and wet locations, as well as outdoors.


技术特点Technical characteristics
1. 工作电压 Operating voltage
600/1000V
2. 测试电压Test Voltage
3 kV
3. 最小弯曲半径 Min. bending radius
见附表联系南游电缆工作人员。Contact NanYou.
4. 工作温度 aOperating Ta

固定安装:-40°C / + 80°C
移动安装:-20°C / + 80°C

导体最大温度:90°C

Fixed installation: -40°C / +80°C

Moving installation: -20°C / +80°C
Maximum conductor ta: 90°C


5. 扭转 Torsion
± 25°C/m
6.最大拉力速度 Max. reeling speed
120 m/min
施工 Construction
1. 导体 Conductor
柔性镀锡铜线 Flexible tinned copper wires
V级 EN-60228 Class V acc. to EN-60228
2. 绝缘 Insulation
PVC ,PE,TPE ,PUR


3.装配 Assembly

绝缘导体以同心层铺设在一起

Insulated conductors laid up together in concentric layers


4. 防扭构造 Strength members
防扭编织物 Anti-torsion braid (Kevlar fiber)
5. 外护套Outer sheath

PVC,PUR

颜色:黑色

Colour: Black


6. 内护套Inner sheath
PVC,PUR
标准/属性 Standards / Properties
1.参考文件 Ref. for construction/drawing
VDE 0250 parte 814
2. 阻燃 Flame Retardant
VDE 0482-332-1-2 / IEC 60332-1-2
3. 其他特点Other characteristics
耐油 Oil resistant
耐弱酸碱和油污 Resistant to acids, lyes and oils
抗紫外线 UV resistant
