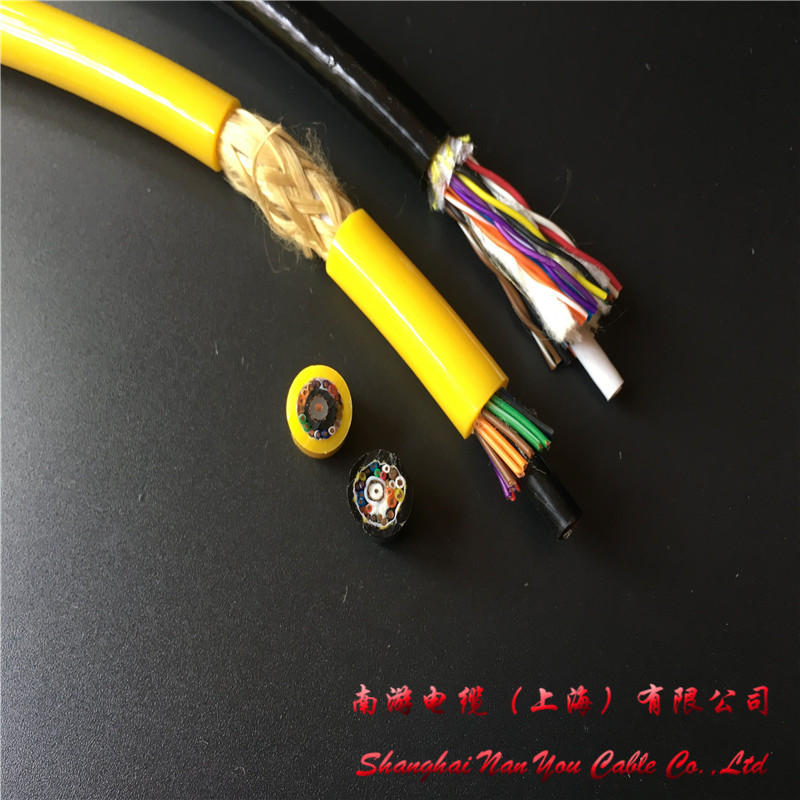

![水下视频线电缆](/uploads/allimg/180814/1-1PQ4143214148.jpg)
Dynamic values (动态参数) |
||
|
Bending radii (弯曲半径) |
Flexible(移动弯曲) 8 x d mm |
|
PVC Cable Temperature (PVC电缆温度) |
flexible (移动弯曲)-5°C to+70°C (in line with EN 60811-504) |
|
PUR Cable Temperature (聚氨酯电缆温度) |
flexible (移动弯曲)-25°C to+80°C (in line with EN 60811-504) |
|
Moving speed (移动速度) |
2 m/s |
Cable design (电缆组件) |
||
|
Conductor (导体) |
Bare copper stranded wire bending resistance / Tinned copper wire (裸铜丝绞线抗弯折/镀锡绞合铜线) |
|
conductor insulation (导体绝缘) |
PVC / PE / TPE / PUR |
|
conductor twisting (导体扭距) |
Wires in short pitches stranded around a core with good tensile strength. (短间距的芯线绕着优秀的抗拉强度核心) |
|
conductor colors (导体颜色) |
Black cores with white numbering, one core green-yellow. |
|
Fill area (填充区) |
PVC core rope/Kevlar fiber/Polyester yarn (PVC芯绳/凯夫拉纤维/聚酯纱) |
|
Mask region (屏蔽区) |
Flexurally resistant braid made from tin-plated copper wires. Cover about 75% linear.(镀锡导体编织铜网屏蔽,覆盖率约75%) |
|
Outer jacket (外被/外护套) |
Improved PUR Colour: orange / gray / black (改进型聚氨酯,颜色:橙色/灰色/黑色) |
Electrical values (电容参数) |
||
|
Nominal voltage (标称电压) |
300/500 V 450/750 V |
|
Test voltage (测试电压) |
2500V (in line with DIN EN 50396) |
Properties 性能 |
||
|
UV-resistant (紫外线) |
Medium (较好) |
|
Oil(油) |
Oil-resistant (following DIN EN 50363-10-2), Class 3. (耐油) |
|
Offshore (海洋) |
Anti seawater (防海水) |
|
flame-retardant (阻燃) |
According to IEC 60332-1-2, CEI 20-35, FT1, VW-1. |
