应用
这些电缆用于机床，工业机械，测量控制和电气应用。这些适用于受到正常机械应力的机械和生产车间内的油污和潮湿区域。可耐受矿物油基润滑剂，稀酸，碱性水溶液和其他化学介质。在指定的温度范围内可以室外使用。
技术数据
标准：适用于EN 50525-2-51
标称电压： U O / U 300/500 V
绝缘电阻：最小值。20GΩxcm
温度范围： -5°C至+ 70°C弯曲。固定安装-30°C至+ 70°C
最小弯曲半径：移动弯曲≈12.5 x电缆ø。固定安装≈4 x电缆ø
测试电压： 4000V

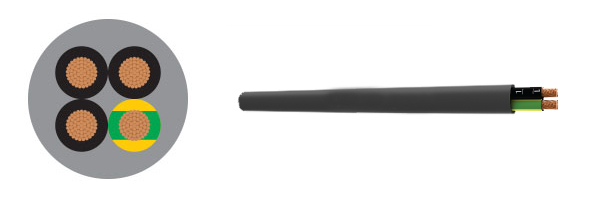

电缆结构
裸铜，细导线符合EN 60228 cl。5.
特种PVC TI2 EN 50363-3的芯绝缘。
根据DIN VDE 0293标准的带有连续白色编号的黑色芯。
线芯以最佳绞合长度绞合成。
特种聚氨酯外护套（PUR）。
护套颜色：灰色（RAL 7001）。
属性
高柔性耐弯曲
广泛耐油。
耐磨和耐缺口。
粘合剂表面低。
耐水解和微生物。抗紫外线ASTM G 154。
电缆设计参数
|
型号 |
芯数×截面积（mm²） |
电缆直径（mm） |
铜重（kg/km） |
电缆重量（kg / km） |
|
DRAG8005 |
2 x 0.5 |
4.8 |
0.7 |
三十 |
|
DRAG8005 |
3G 0.5 |
5.1 |
3.0 |
37 |
|
DRAG8005 |
3 x 0.5 |
5.1 |
3.0 |
37 |
|
DRAG8005 |
4G 0.5 |
5.6 |
7.4 |
46 |
|
DRAG8005 |
4 x 0.5 |
5.6 |
7.4 |
46 |
|
DRAG8005 |
5G 0.5 |
6 |
1.7 |
55 |
|
DRAG8005 |
5 x 0.5 |
6 |
1.7 |
55 |
|
DRAG8005 |
7G 0.5 |
6.7 |
0.4 |
72 |
|
DRAG8005 |
7 x 0.5 |
6.7 |
0.4 |
72 |
|
DRAG8005 |
10G 0.5 |
8.8 |
3.5 |
115 |
|
DRAG8005 |
12G 0.5 |
8.9 |
2.2 |
126 |
|
DRAG8005 |
18G 0.5 |
10.5 |
78.2 |
180 |
|
DRAG8005 |
25G 0.5 |
12.9 |
108.6 |
263 |
|
DRAG8005 |
34G 0.5 |
14.3 |
147.8 |
337 |
|
DRAG8005 |
42G 0.5 |
16.6 |
182.5 |
437 |
|
DRAG8005 |
2 x 0.75 |
5.3 |
13.0 |
39 |
|
DRAG8005 |
3G 0.75 |
5.6 |
19.6 |
48 |
|
DRAG8005 |
3 x 0.75 |
5.6 |
19.6 |
48 |
|
DRAG8005 |
4G 0.75 |
6.1 |
26.1 |
59 |
|
DRAG8005 |
4 x 0.75 |
6.1 |
26.1 |
59 |
|
DRAG8005 |
5G 0.75 |
6.9 |
32.6 |
76 |
|
DRAG8005 |
5 x 0.75 |
6.9 |
32.6 |
76 |
|
DRAG8005 |
7G 0.75 |
7.6 |
45.6 |
97 |
|
DRAG8005 |
7 x 0.75 |
7.6 |
45.6 |
97 |
|
DRAG8005 |
10G 0.75 |
10.0 |
5.2 |
156 |
|
DRAG8005 |
12G 0.75 |
10.1 |
8.2 |
171 |
|
DRAG8005 |
18G 0.75 |
11.9 |
17.3 |
247 |
|
DRAG8005 |
25G 0.75 |
14.6 |
63.0 |
357 |
|
DRAG8005 |
34G 0.75 |
15.7 |
21.6 |
446 |
|
DRAG8005 |
41G 0.75 |
17.4 |
67.3 |
543 |
|
DRAG8005 |
2 x 1 |
5.6 |
17.4 |
46 |
|
DRAG8005 |
3G 1 |
6 |
26.1 |
59 |
|
DRAG8005 |
3 x 1 |
6 |
26.1 |
59 |
|
DRAG8005 |
4G 1 |
6.8 |
34.8 |
77 |
|
DRAG8005 |
4 x 1 |
6.8 |
34.8 |
77 |
|
DRAG8005 |
5G 1 |
7.5 |
43.5 |
93 |
|
DRAG8005 |
5 x 1 |
7.5 |
43.5 |
93 |
|
DRAG8005 |
7G 1 |
8.9 |
60.8 |
132 |
|
DRAG8005 |
10G 1 |
10.8 |
86.9 |
191 |
|
DRAG8005 |
12G 1 |
11.1 |
104.3 |
215 |
|
DRAG8005 |
18G 1 |
13.2 |
156.5 |
311 |
|
DRAG8005 |
25G 1 |
16.2 |
217.3 |
452 |
|
DRAG8005 |
34G 1 |
18.1 |
295.5 |
587 |
|
DRAG8005 |
41G 1 |
19.7 |
356.4 |
700 |
|
DRAG8005 |
2 x 1.5 |
6.3 |
25.5 |
61 |
|
DRAG8005 |
3G 1.5 |
6.7 |
38.2 |
78 |
|
DRAG8005 |
3 x 1.5 |
6.7 |
38.2 |
78 |
|
DRAG8005 |
4G 1.5 |
7.3 |
50.9 |
98 |
|
DRAG8005 |
4 x 1.5 |
7.3 |
50.9 |
98 |
|
DRAG8005 |
5G 1.5 |
8.2 |
63.7 |
123 |
|
DRAG8005 |
5 x 1.5 |
8.2 |
63.7 |
123 |
|
DRAG8005 |
7G 1.5 |
9 |
89.1 |
160 |
|
DRAG8005 |
7 x 1.5 |
9 |
89.1 |
160 |
|
DRAG8005 |
12G 1.5 |
12.1 |
152.8 |
280 |
|
DRAG8005 |
18G 1.5 |
14.5 |
229.2 |
412 |
|
DRAG8005 |
25G 1.5 |
17.2 |
318.3 |
576 |
|
DRAG8005 |
34G 1.5 |
19.6 |
432.9 |
766 |
|
DRAG8005 |
41G 1.5 |
21.3 |
522.0 |
915 |
|
DRAG8005 |
2 x 2.5 |
7.6 |
42.4 |
93 |
|
DRAG8005 |
3G 2.5 |
8.3 |
63.7 |
124 |
|
DRAG8005 |
4G 2.5 |
9.1 |
84.9 |
157 |
|
DRAG8005 |
5G 2.5 |
10.2 |
106.1 |
196 |
|
DRAG8005 |
7G 2.5 |
11.2 |
148.5 |
256 |
|
DRAG8005 |
12G2.5 |
14.8 |
254.6 |
443 |
|
DRAG8005 |
4G 4 |
10.8 |
135.0 |
234 |
|
DRAG8005 |
5G 4 |
12.1 |
168.7 |
292 |
|
DRAG8005 |
7G 4 |
13.3 |
236.2 |
383 |
|
DRAG8005 |
4G 6 |
13.0 |
202.4 |
345 |
|
DRAG8005 |
5G 6 |
14.5 |
253.1 |
430 |
|
DRAG8005 |
7G 6 |
16.0 |
354.3 |
566 |
|
DRAG8005 |
4G 10 |
15.5 |
344.7 |
539 |
|
DRAG8005 |
5G 10 |
17.1 |
430.8 |
666 |
|
DRAG8005 |
7G 10 |
19.0 |
603.2 |
888 |
|
DRAG8005 |
4G 16 |
18.8 |
574.1 |
852 |
* G =绿色/黄色接地芯
X =无绿色/黄色接地芯
